H bridge with MOSFET (CB21098E)

Details
Written by: Newton C. Braga

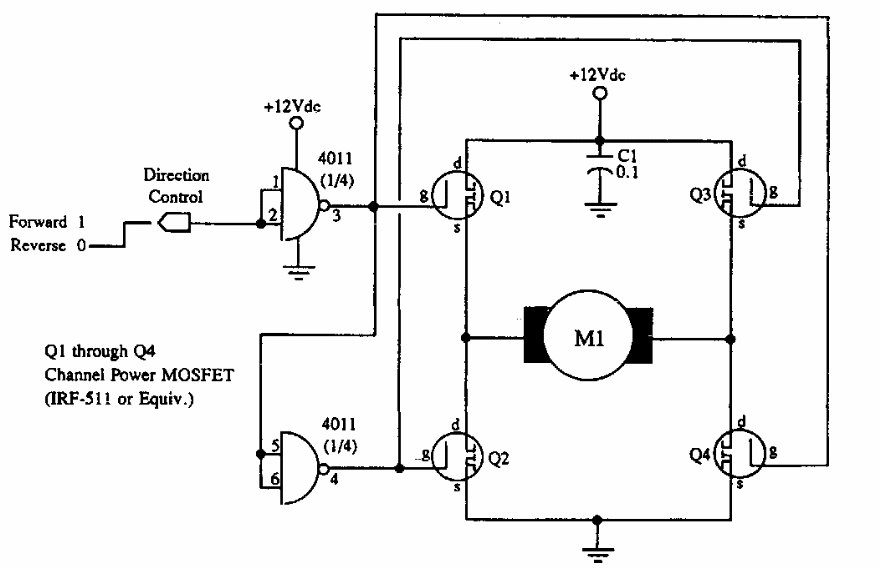

This circuit, which appears elsewhere in this section, was taken from McGRAW documentation from the 1990s. The circuit supports any MOSFET according to the motor current.




| Clique na imagem para ampliar |
