Balanced Line Driver (CB6223E)

Details
Written by: Newton C. Braga

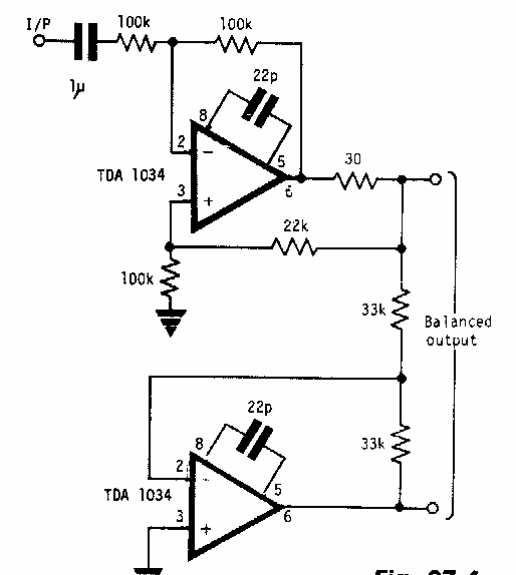

    This 600-ohm line driver was found in a 1980s documentation. The integrated circuit used is not common today.
