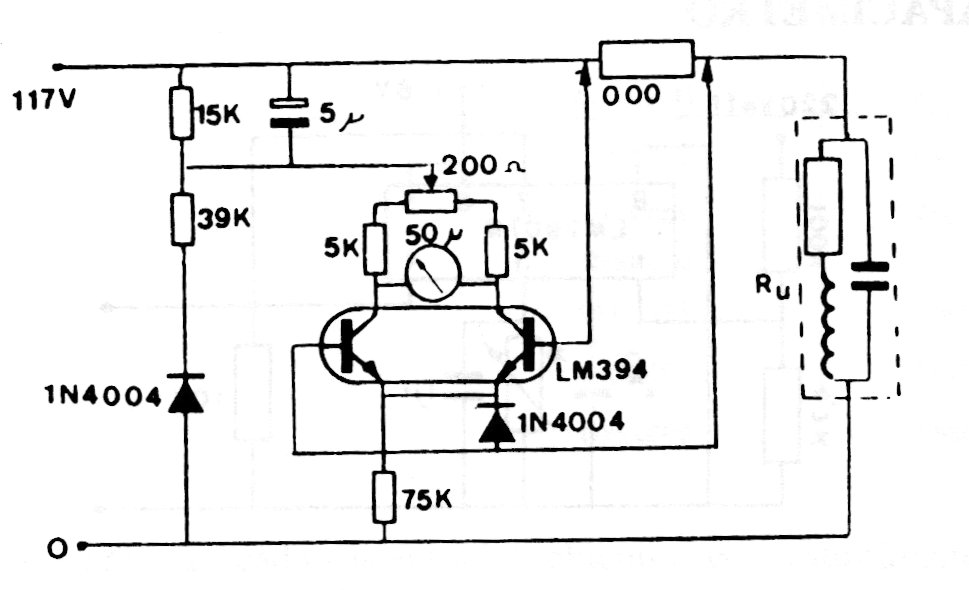

This circuit can measure the power of loads up to 1 kW and its accuracy depends on the settings and components used. The circuit was found in a European schematic from the 1960s and the power is taken from the network that powers the device under test.
| Clique na imagem para ampliar |
