Converter 12 to 28 V (CB6581E)

Details
Written by: Newton C. Braga

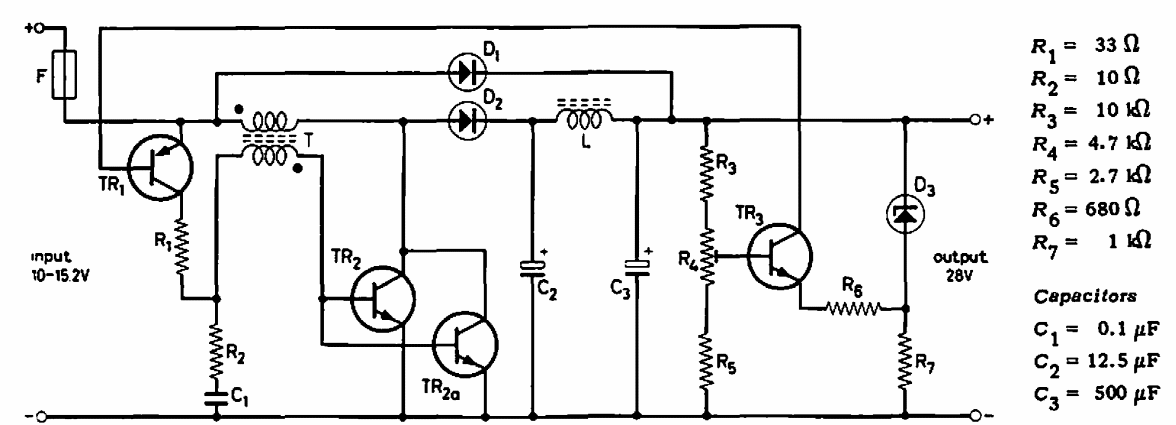

     This circuit was found in Philips documentation from 1967. The components are of the time, being transistors like BCY38 for TR1, BC108 for TR3, and others depending on currents.
