Flip Flop with SCR (CB6534E)

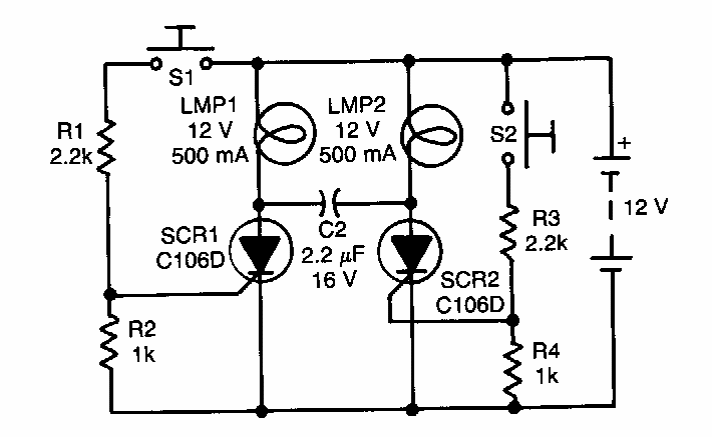

Found on a Radio Electronics this 80's circuit uses two common SCRs driving lamps. This setting appears elsewhere in this site and this section.

| Clique na imagem para ampliar |

50 ohm Line Driver LM3900 (CB5056E)
The gain of this amplifier is 10 times and the excursion to the output voltage is 6.0 V (peak to...
741 Field Intensity Meter (CB6235E)
This circuit has the coil tuned input according to the operating frequency range. The indicator can...
Nuclear Particle Detector (CB5927E)
The sensor of this circuit is a large surface diode. We believe that a small solar cell can also...
