Regenerative pulses for playback (CB7304S)

Details
Written by: Newton C. Braga

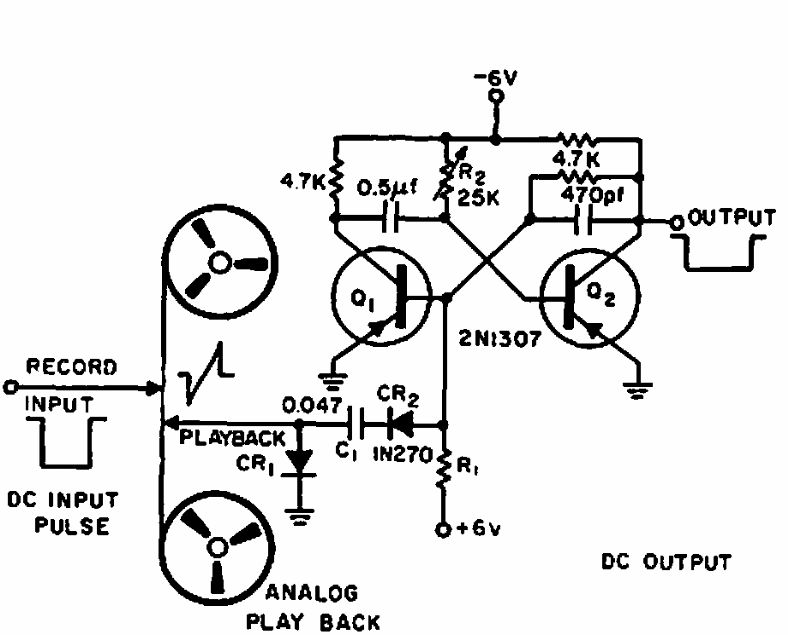

     This circuit used in tape recorders was found in an Electronic Design. The components support general-purpose equivalents. The circuit serves to recover media.
