Overtemperature Alarm (CB26158E)

Details
Written by: Newton C. Braga

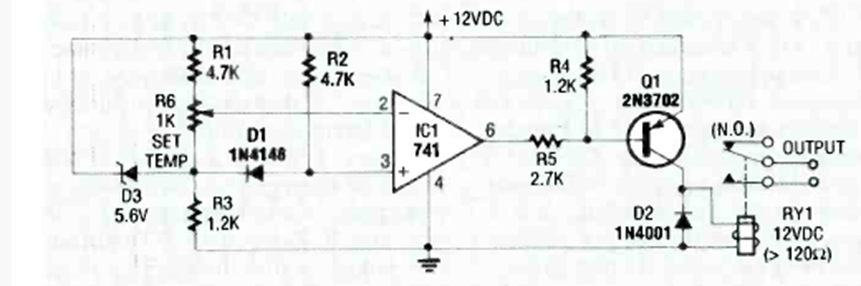

This circuit was found in the Electronics Experimenter Handbook from 1991. The sensor is a diode and the circuit has a relay according to the voltage used in the supply.
