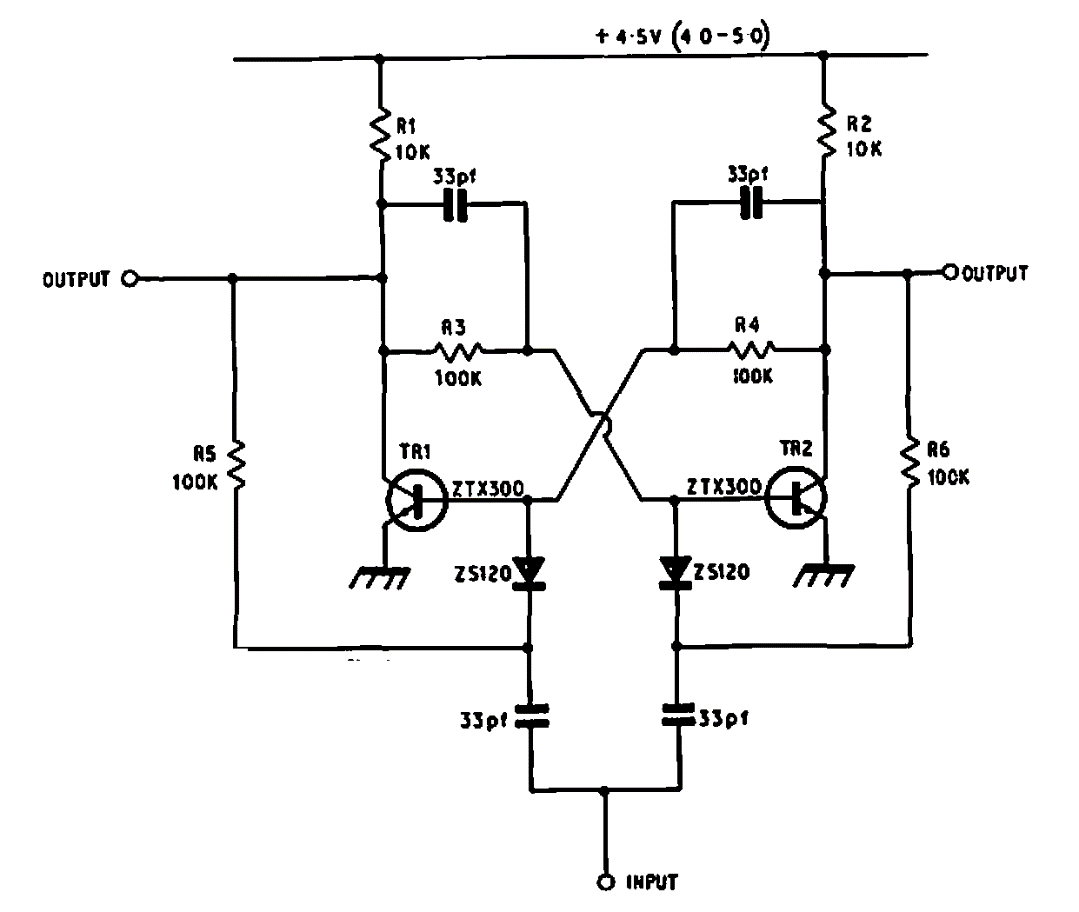

Obtained in a 1969 Ferranti documentation, this circuit dissipates only 2.2 mW with 4.5 V. The circuit can be designed based on modern equivalent transistors.
| Clique na imagem para ampliar |
Low dissipation biestable (CB6808E)
