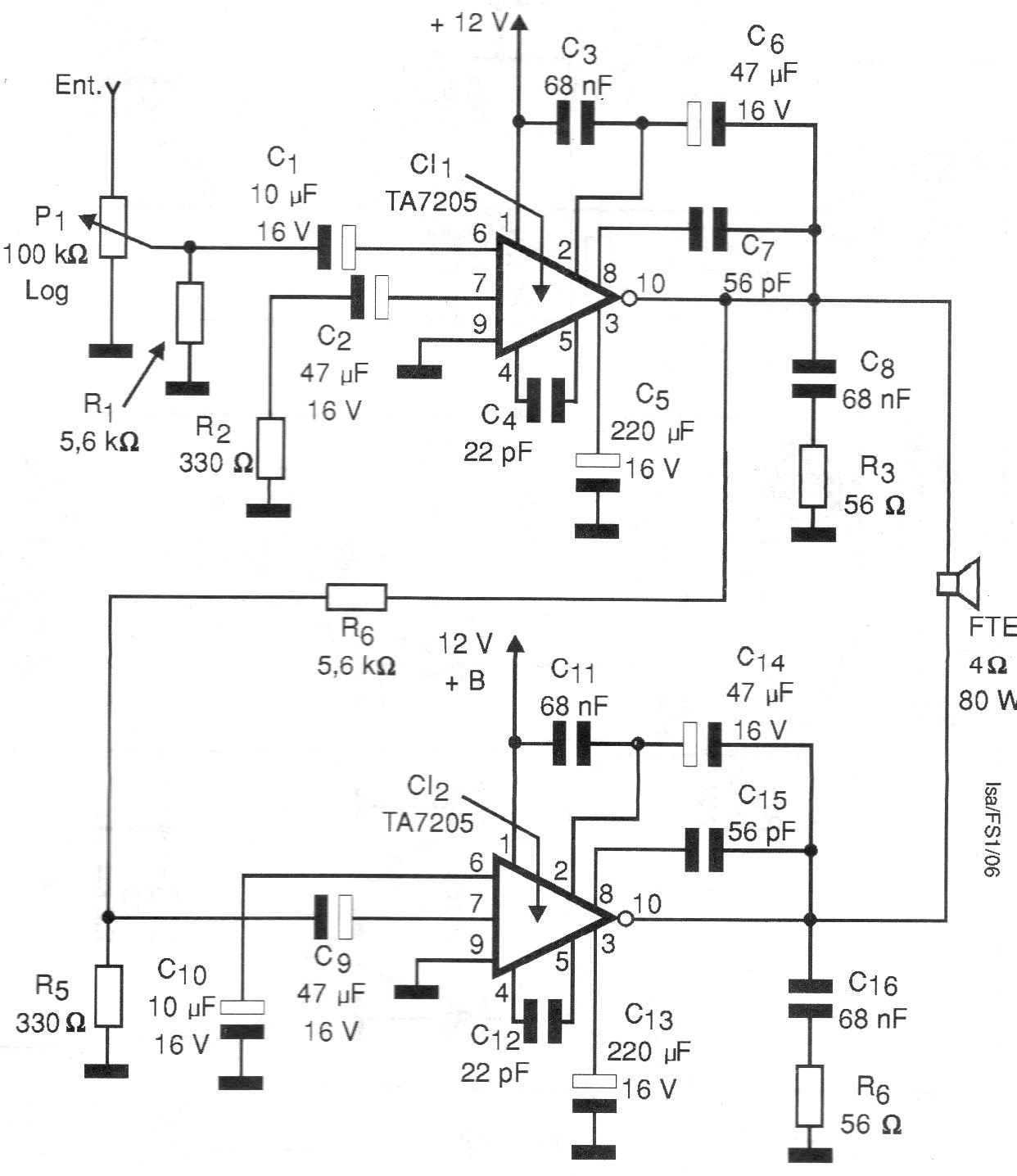

The basis of this circuit is the integrated TA7205, which is not very common today. We found the circuit in a 1998 documentation. The integrated circuit must be mounted on a heat sink. The power source must have excellent filtering with at least 3 A.
