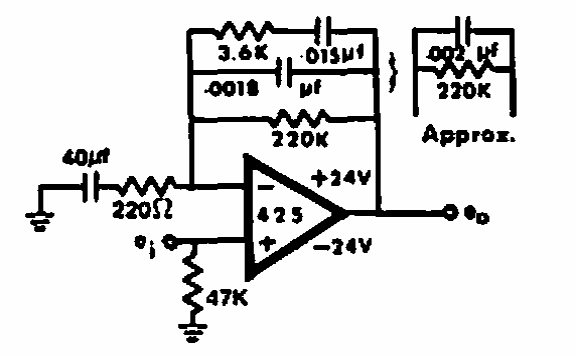

This circuit was found in an American audio documentation from 1968. The configuration can be applied to modern operational amplifiers. The power source is symmetrical with voltage according to the operational.
NAB Equalizer (CB7307E)
- Details
- Written by: Newton C. Braga
