Voltage Gain Control (CB6564E)

Details
Written by: Newton C. Braga

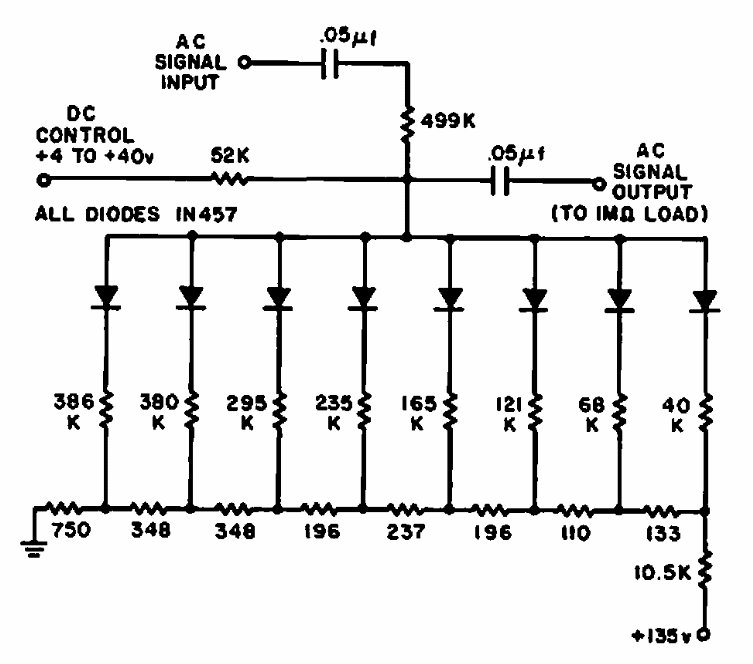

     Found in a 1965 Electronic Design the purpose of this circuit is to control the gain of a stage by applying an external voltage. The circuit operates at high voltages.
