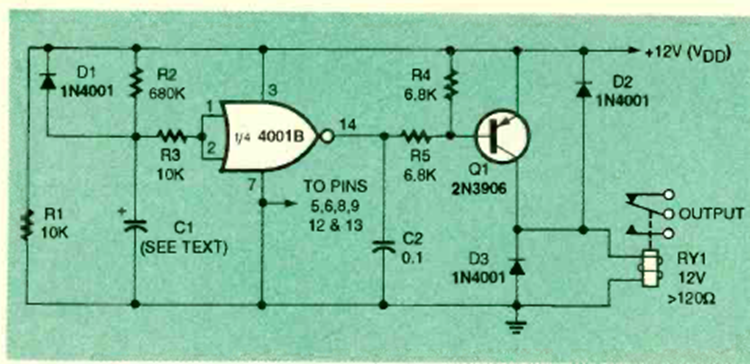

This circuit was found in the July 1994 issue of Electronics Now magazine. The relay can be rated at up to 12 V and 100 mA. The transistor is a general purpose transistor.
| Clique na imagem para ampliar |
4001 Time Delay Relay (CB25742E)
- Details
- Written by: Newton C. Braga
