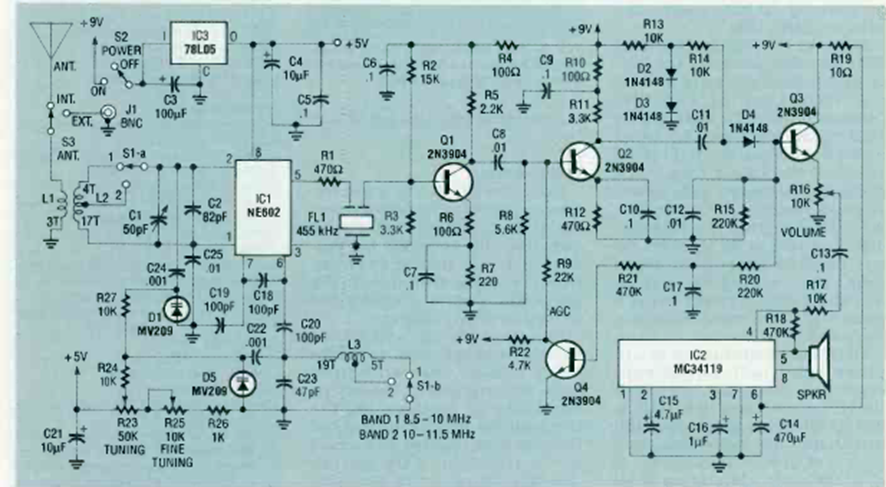

This circuit was found in the January 1991 issue of Radio Electronics magazine. The circuit uses integrated circuits of the time and the coils depend on the tuned bands.
| Clique na imagem para ampliar |
Shortwave Receiver (CB25367E)
- Details
- Written by: Newton C. Braga
