Accelerated Flashing LEDs with 4017 (CB25436E)

Details
Written by: Newton C. Braga

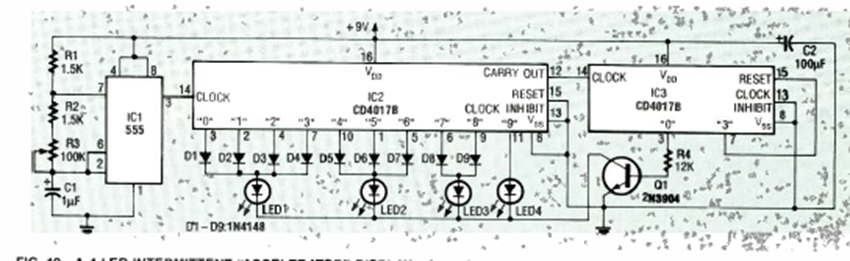

This LED special effects circuit was found in the February 1992 Radio Electronics magazine. The circuit uses 4 LEDs and is controlled by R3.




| Clique na imagem para ampliar |
