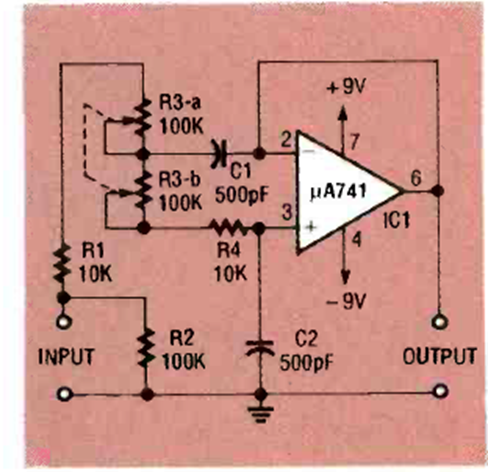

Using the 741 operational amplifier this circuit was found in the August 1993 Electronics Now magazine. The source must be symmetrical, and the adjustment is made with a double potentiometer.
Variable low pass filter 741 (CCB5600E)
- Details
- Written by: Newton C. Braga
