Triac Controlled Switch (CB25873E)

Details
Written by: Newton C. Braga

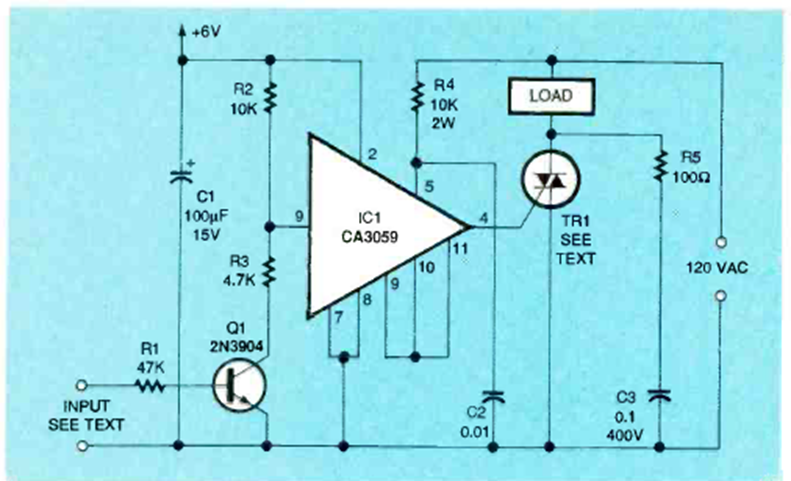

This circuit with the CA3059 was found in the July 1995 Elexctronics Now magazine. The signal must be DC, and the circuit is not isolated from the mains.




| Clique na imagem para ampliar |
