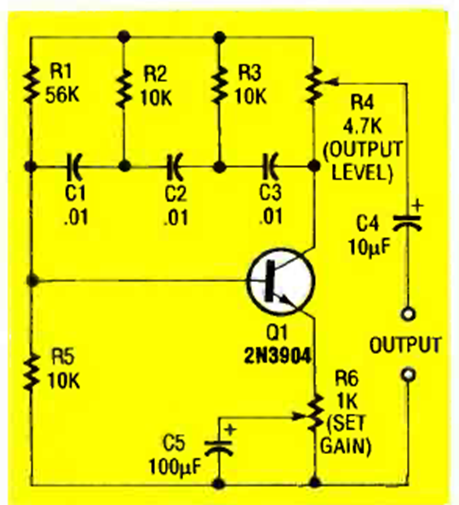

Phase Shift Oscillator (CB25642E)
- Details
- Written by: Newton C. Braga
The network formed by resistors and capacitors determines the frequency of this sinusoidal oscillator. The transistor is general purpose and has an operating point adjustment.
