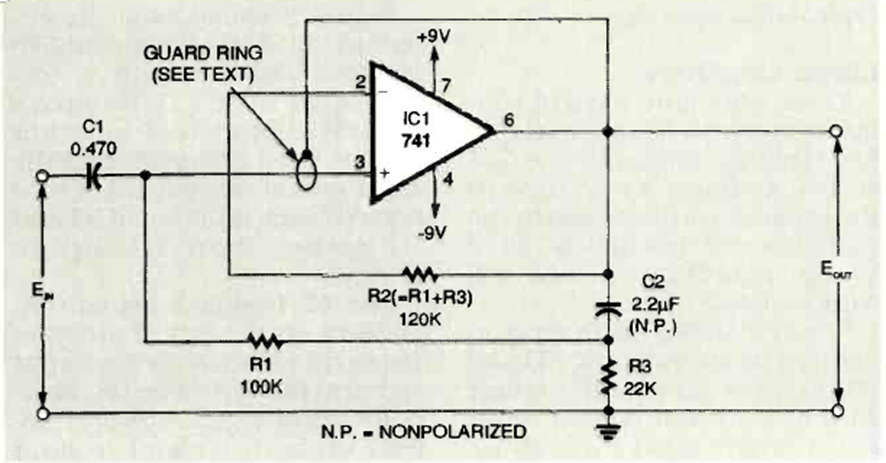

50 M ohm Voltage Follower (CB25793E)

This circuit was found in the January 1995 Electronics Now magazine. The source must be dual, and a noise pickup guard ring must be used.

| Clique na imagem para ampliar |
