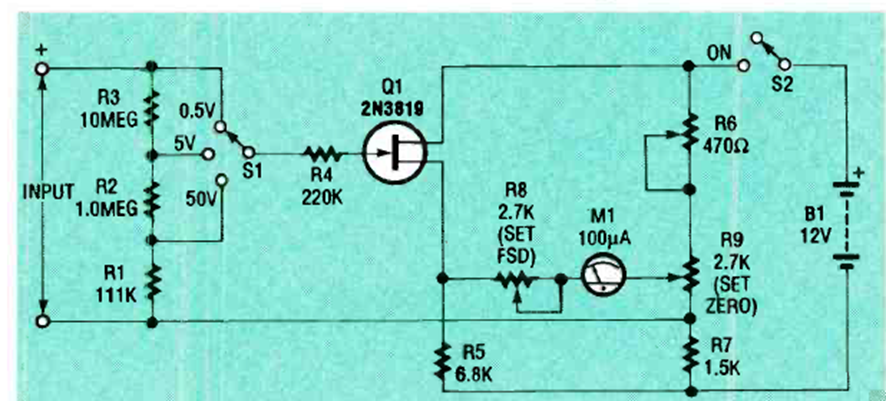

3-Range FET Voltmeter (CB25570E)

Details
Written by: Newton C. Braga



This circuit can work with almost any JFET. The circuit is from an Electronics Now from April 1993. It is powered by a 12 V battery, but can also be powered by 9 V.
