DC to DC Inverter with 555 (CB25547E)

Details
Written by: Newton C. Braga

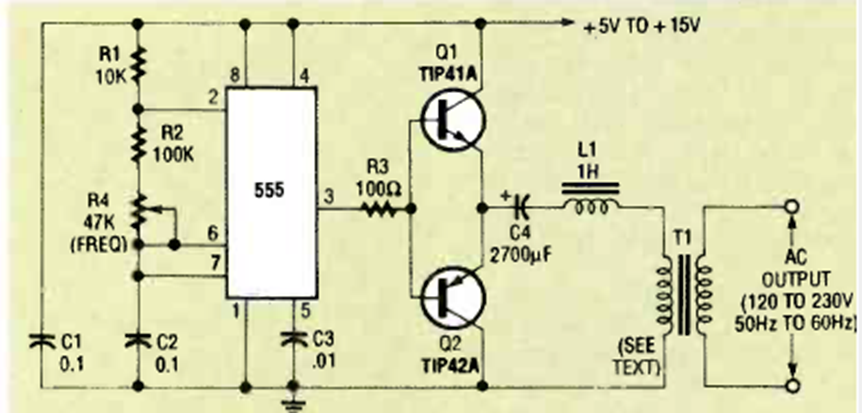

A non-sinusoidal 120 V voltage can be obtained with this circuit found in the December 1992 Radio Electronics magazine. The power is a few watts.
