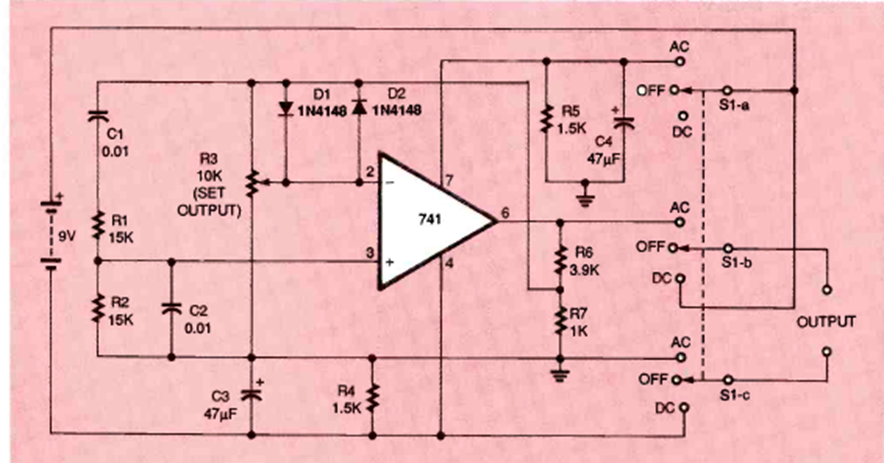

Bridge Signal Source (CB25892E)

This circuit provides voltages and a 1 kHz signal for measurement bridges. The circuit is from Electronics Now magazine, September 1995.
