1 A symmetrical power supply (CB25954E)

Details
Written by: Newton C. Braga

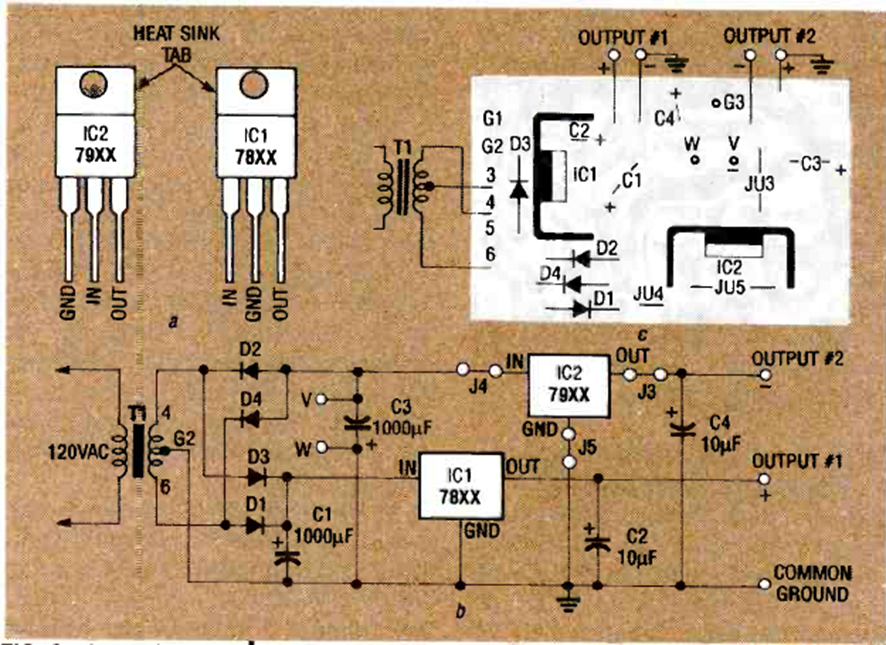

The circuit shown, with the printed circuit board, was found in an article in the June 1990 issue of Radio Electronics magazine. Integrated circuits must be equipped with heat sinks.
