CMOS interface with optical coupler (CB25493E)

Details: Written by: Newton C. Braga

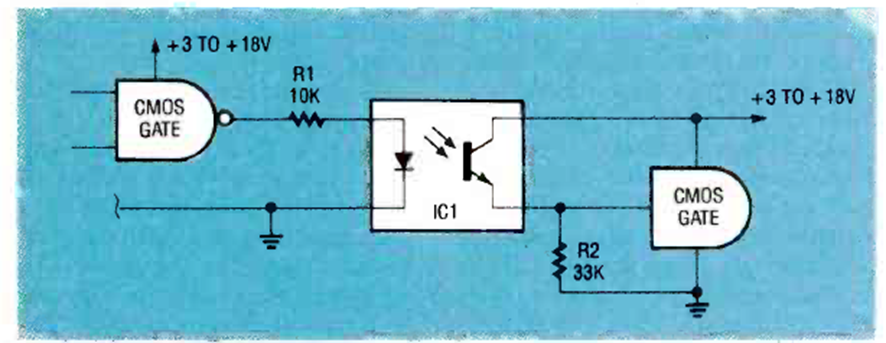

The figure shows how to couple two CMOS circuits using an optical coupler to achieve isolation. The circuit is from a Radio Electronics from August 1992.

| Clique na imagem para ampliar |
