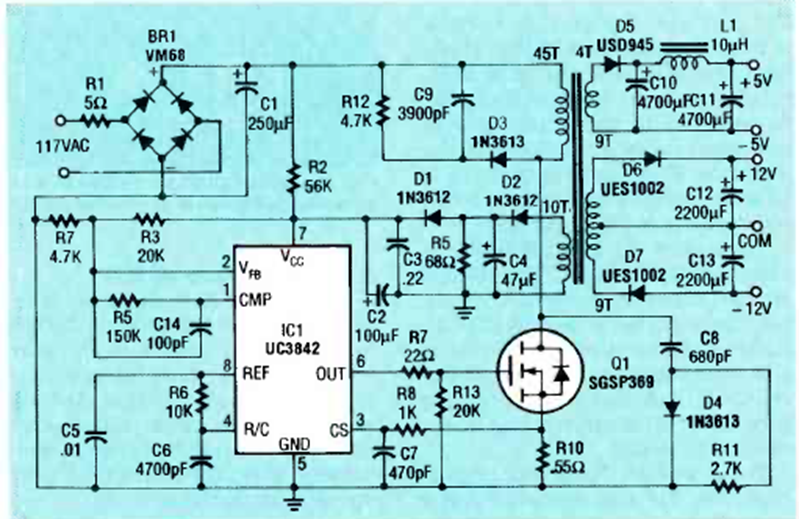

Switching Power Supply UC3442 (CB25381E)

This multiple switching power supply was found in the April 1991 issue of Radio Electronics magazine. The MOSFET must be equipped with a heat sink.

| Clique na imagem para ampliar |
