Active Tone Control (CB25701E)

Details
Written by: Newton C. Braga

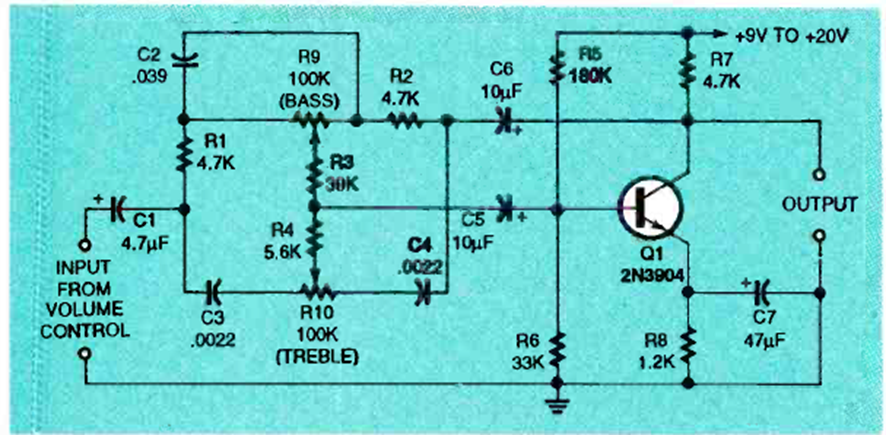

This circuit was obtained from the March 1994 Electronics Now magazine. The circuit uses a common transistor which can be a low noise type such as the BC549.
