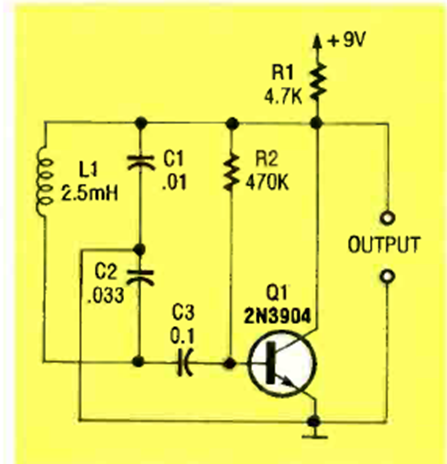

This is the configuration of this type of oscillator given in an article in Electronics Now magazine from December 1993. The frequency depends on L1. The maximum achieved is around a few tens of megahertz.
Classic Colpitts Oscillator (CB25646E)
- Details
- Written by: Newton C. Braga
