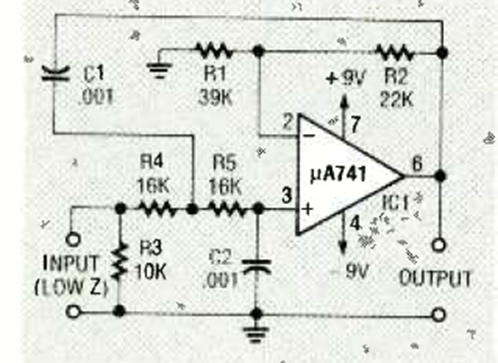

This low-pass filter with 741 op and symmetrical source was found in the August 1993 issue of Electronics Now magazine. The frequency is 10 kHz but can be changed by changing the capacitors.
Unity Gain Second Order Filter (CB25596E)
- Details
- Written by: Newton C. Braga
