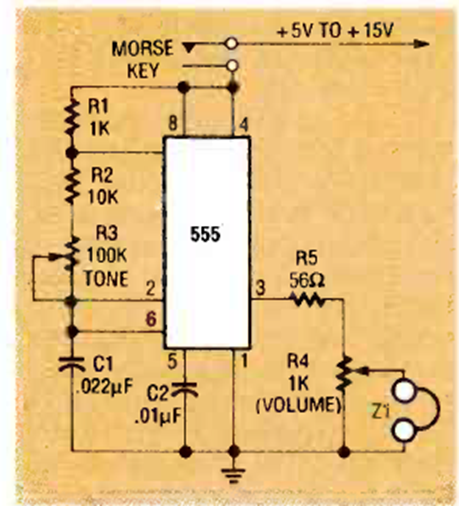

555 Code Practice Oscillator (CB25530E)

This circuit was found in the November 1992 issue of Radio Electronics magazine. It uses headphones and the tone is set at R3.
