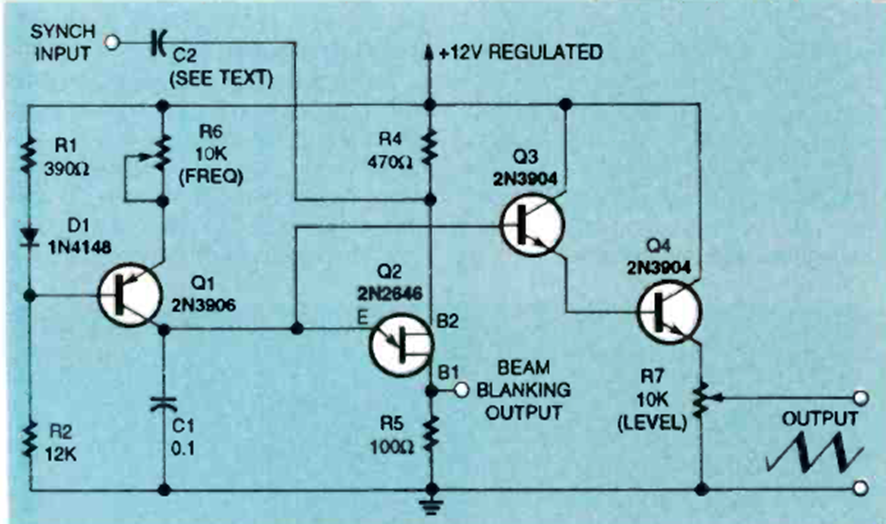

Based on a unijunction transistor, this circuit was found in the January 1994 issue of Electronics Now magazine. The frequency range depends on C1, which can be changed.
| Clique na imagem para ampliar |
Linear Sawtooth Generator (CB25678E)
- Details
- Written by: Newton C. Braga
