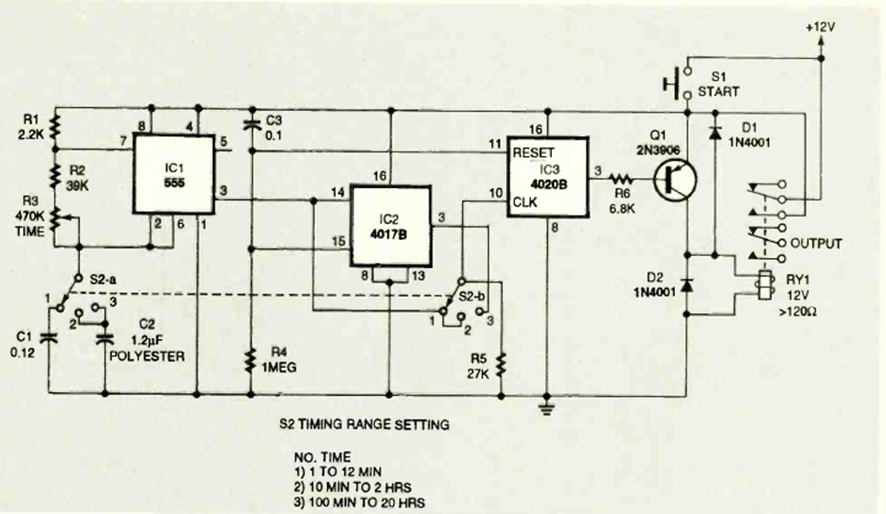

1 Minute to 20 Hour Timer (CB25748E)

This wide range timer was found in the July 1994 issue of Electronics Now magazine. The circuit drives a relay and is powered by the relay voltage.

| Clique na imagem para ampliar |
