Half Wave Rectifier (CB15767E)

Details
Written by: Newton C. Braga

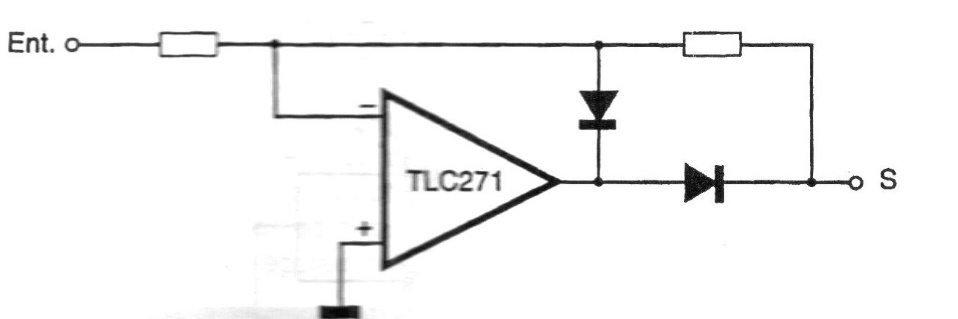

This is a precision half-wave rectifier, suggested by Texas Instruments. Diodes are commonly used, and resistors can have signal values. The power supply must be symmetrical.
