Audio Interface with Optocoupler (CB25495E)

Details: Written by: Newton C. Braga

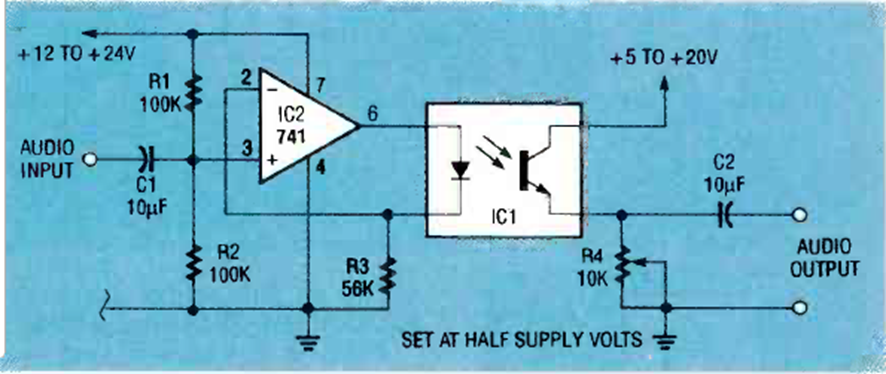

This isolation circuit for audio signals was found in the August 1992 issue of Radio Electronics magazine. The circuit can be applied to other operational amplifiers.
