Oscillator (CB25643E)

Details: Written by: Newton C. Braga

Wien Bridge

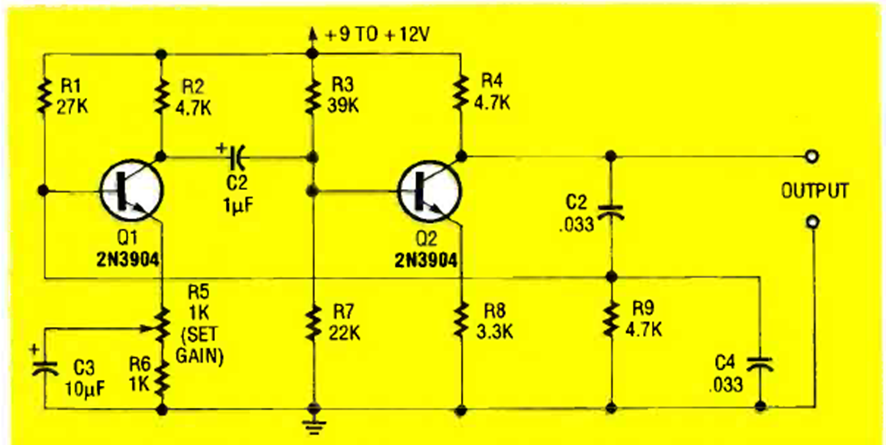

This Vienna bridge oscillator generates a sinusoidal signal whose frequency depends basically on C2 and C4. The circuit is from an Electronics Now from December 1993.

| Clique na imagem para ampliar |
