Vocal Filter (CB25355E)

Details
Written by: Newton C. Braga

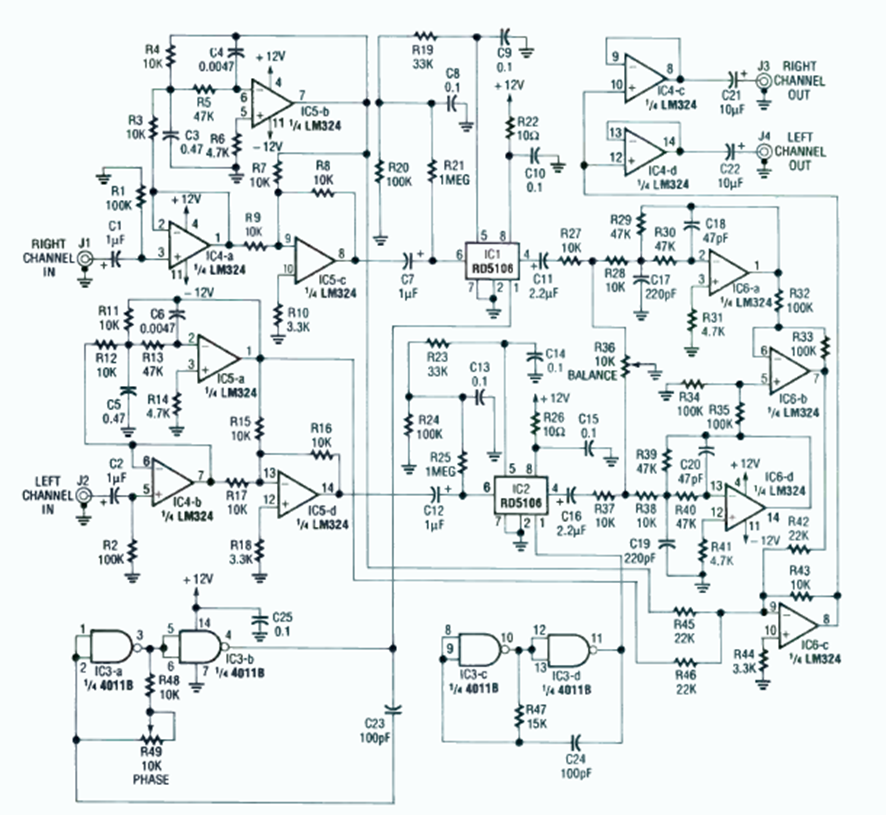

We found this circuit for vocal effects in the September 1990 issue of Radio Electronics magazine. The circuit works with signals from two inputs of a stereo system.




| Clique na imagem para ampliar |
