Band Switch (CB21254E)

Details
Written by: Newton C. Braga

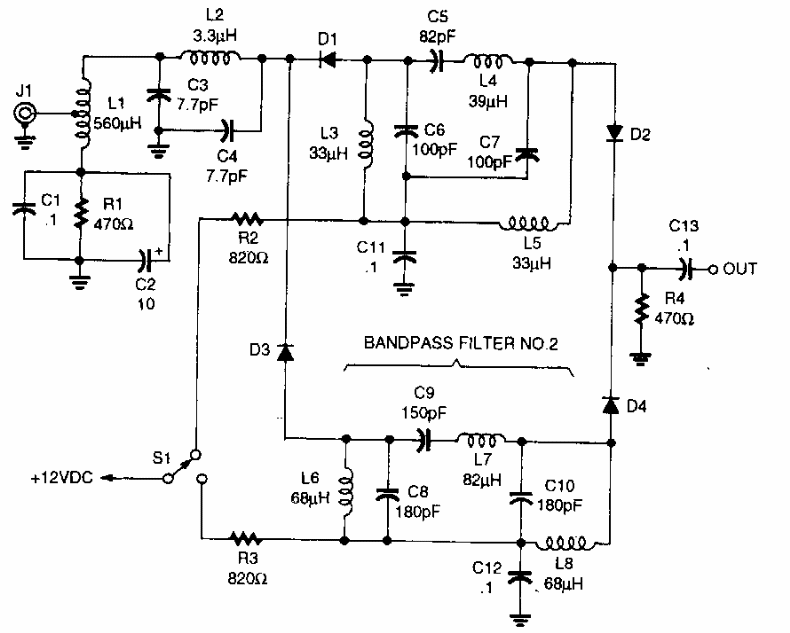

This switch or band selector for receivers was found in a Popular Electronics from the 1990s. The circuit uses a PIN diode.
