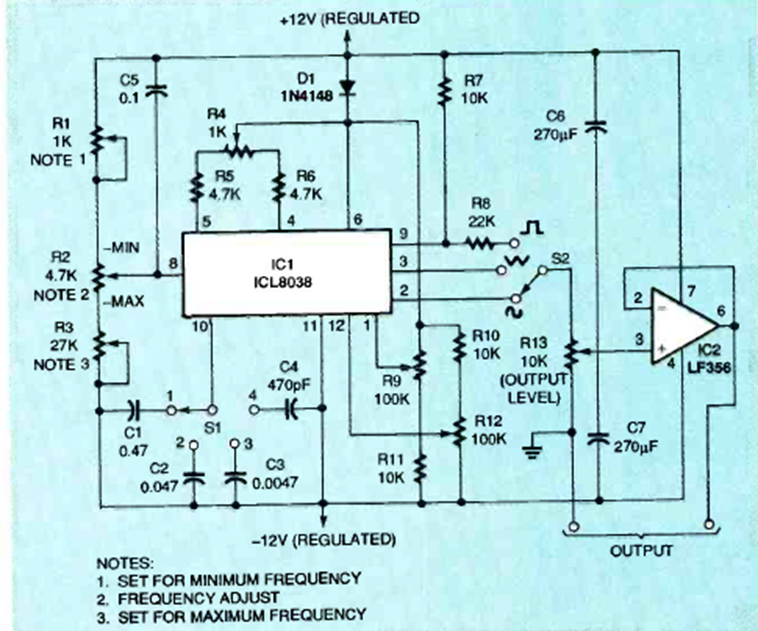

This circuit generates signals of various frequencies and waveforms, making it useful on the bench. The circuit was found in the January 1966 issue of Electronics Now magazine. The circuit has an amplified output.
| Clique na imagem para ampliar |
ICL8038 Function Generator (CB25967E)
- Details
- Written by: Newton C. Braga
