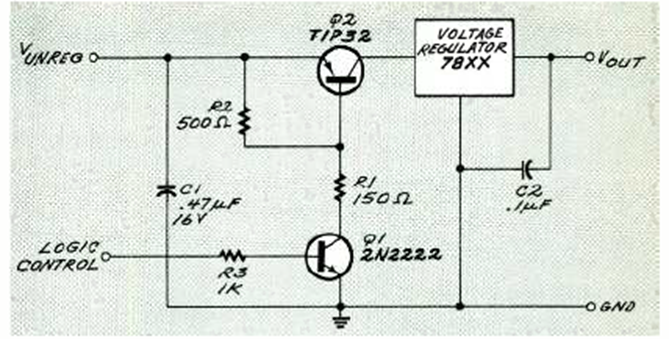

We found this circuit in the July 1994 issue of Electronics Now magazine. The circuit can use other power transistors and Q1 and general-purpose transistors. The IC can also be of another type and current.
| Clique na imagem para ampliar |
Logic Controlled Regulator (CB25734E)
- Details
- Written by: Newton C. Braga
