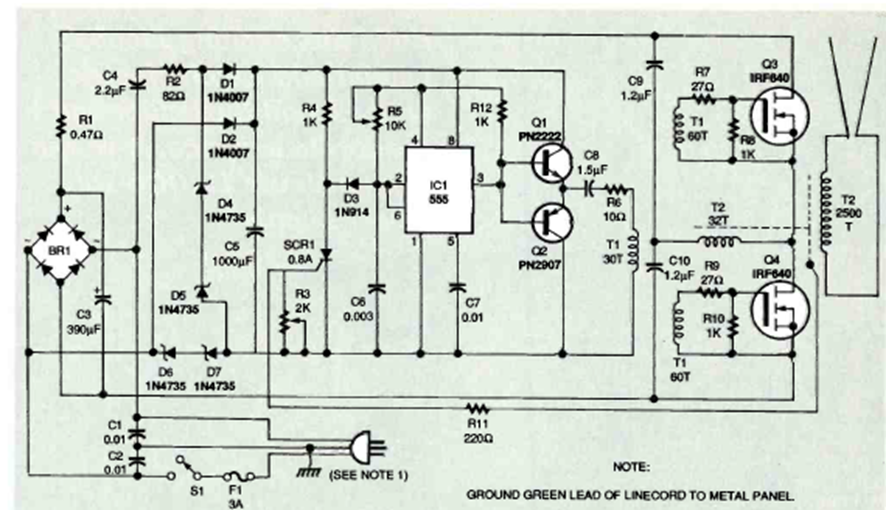

A Jacob's ladder is a high voltage effects device in which a spark passes between two V-shaped conductors, disappearing at the end and starting a new cycle. This circuit shown is from Electronics Now, December 1995.
| Clique na imagem para ampliar |
Jacob's Ladder (CB25903E)
