Sequential Flasher (CB25405E)

Details
Written by: Newton C. Braga

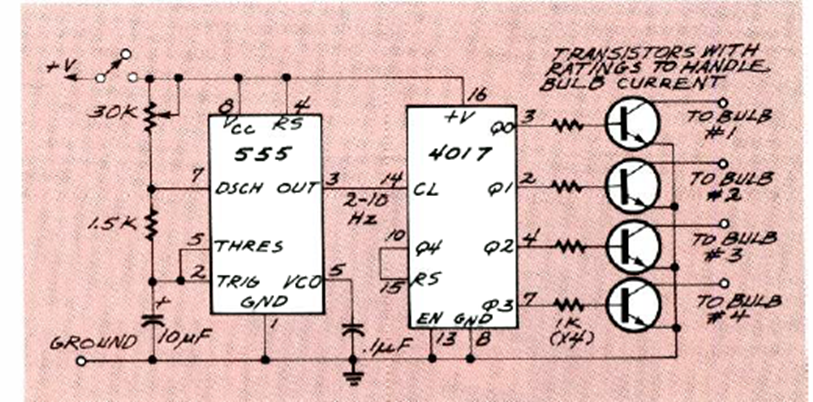

This conventional 4 channel circuit with the 4017 and 555 was found in the November 1991 Radio Electronics magazine. The potentiometer can be 47k and it controls the speed of the effect.




| Clique na imagem para ampliar |
