3-Gate Triggered Oscillator (CB25332E)

Details
Written by: Newton C. Braga

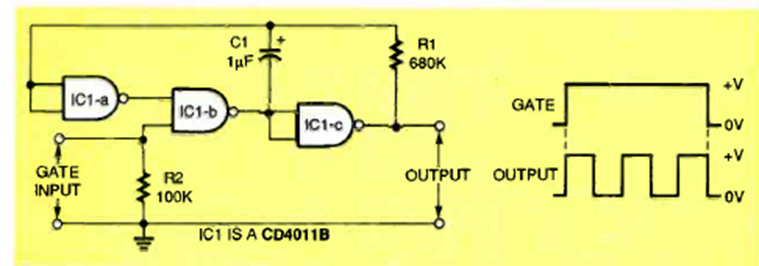

Using 3 ports, this rectangular oscillator was found in the March 1996 issue of Electronics Now magazine. The maximum frequency is a few megahertz, determined by R1 and C1.
