Frequency Synthesizer 4046 (CB25257E)

Details
Written by: Newton C. Braga

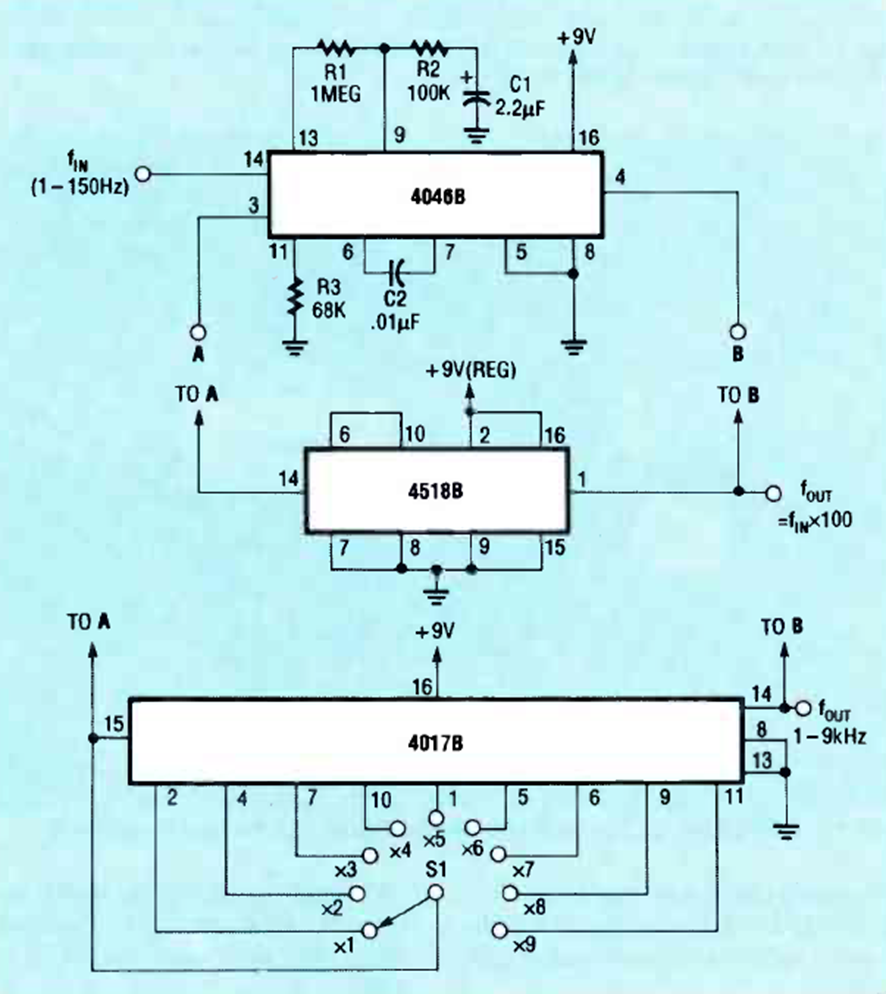

We found this CMOS circuit based on the PLL4046 in the December 1989 issue of Radio Electronics magazine. The circuit is powered by a 9 V voltage.
