Solid State Relay (CB25258E)

Details
Written by: Newton C. Braga

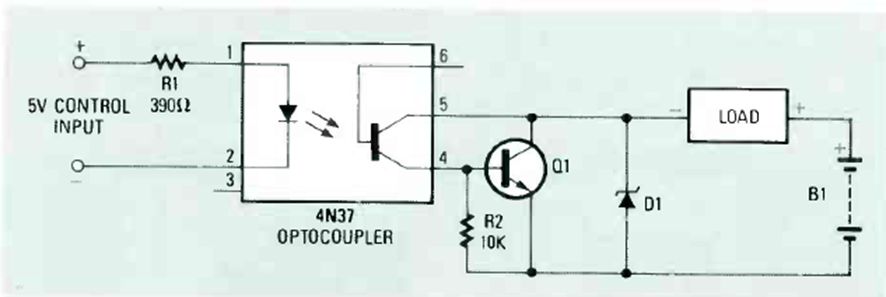

We found this solid-state relay circuit that can function as a shield in a Radio Electronics magazine from December 1989. The optocoupler is a phototransistor type.






| Clique na imagem para ampliar |
