Distortion Analyzer (CB25162E)

Details
Written by: Newton C. Braga

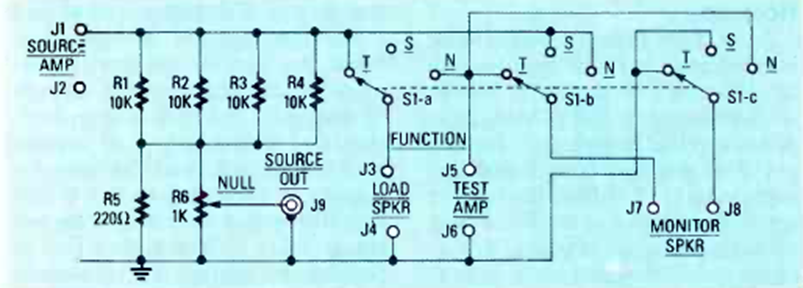

This circuit is designed to analyze the distortion of an audio signal. We found it in an article in the October 1988 Radio Electronics magazine that teaches how to use it.
