LM3914 Moving Point Voltmeter (CB25113E)

Details
Written by: Newton C. Braga

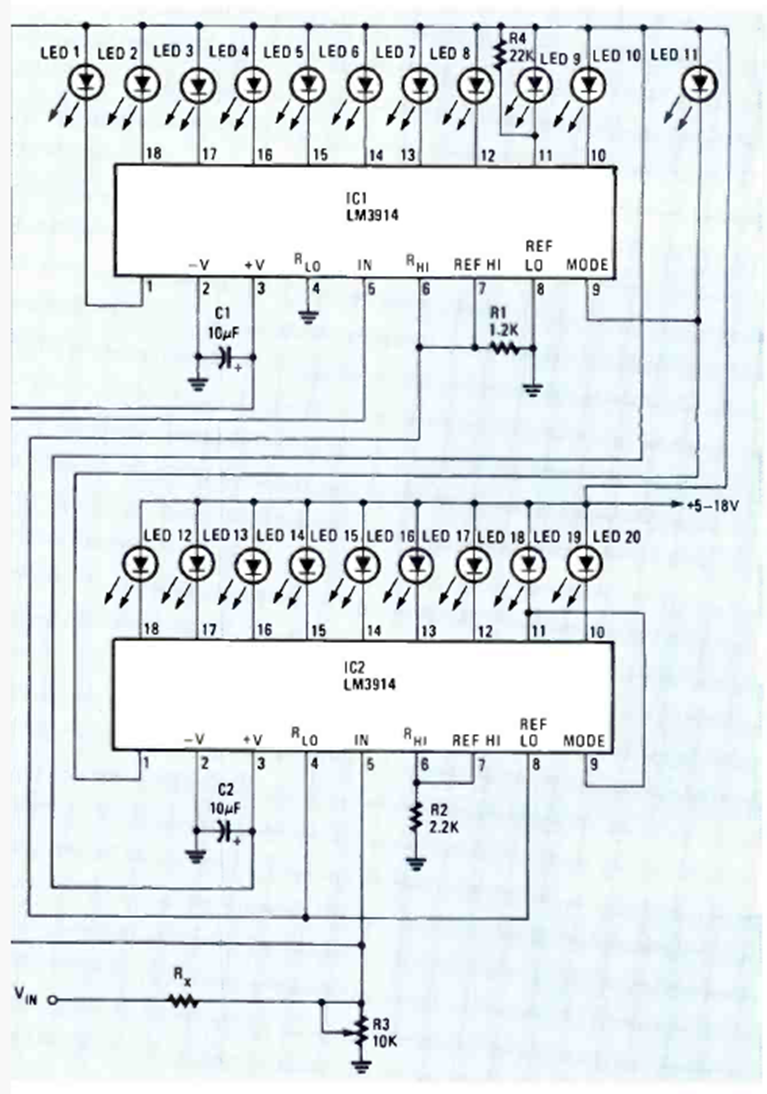

This circuit was found in a March 1988 Radio Electronics. The voltage scale is set at R3. 19 LEDs are used in this indicator circuit.
