Duty Cycle Oscillator CA3038 (CB25141E)

Details
Written by: Newton C. Braga

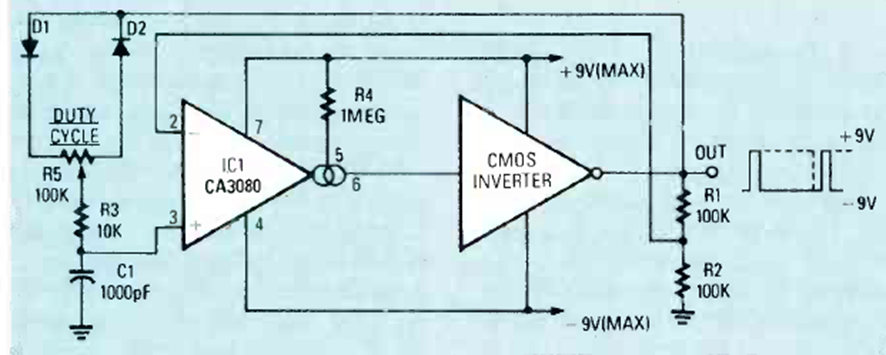

We found this circuit with duty cycle adjustment in the May 1988 Radio Electronics magazine. The source must be symmetrical, and the frequency given by R3 and C1.
