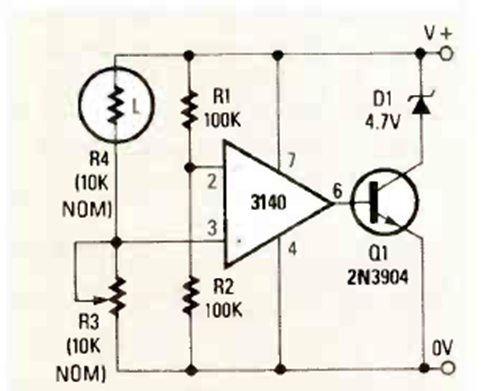

Photosensitive power circuit (CB25193E)

This circuit can be used in alarms by activating a relay or a current load that depends on the transistor used. Sensitivity adjustment is made in R3.
