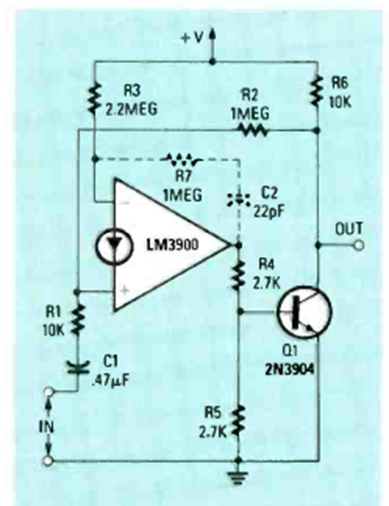

Gain Circuit for LM3900 (CB25167E)

Details
Written by: Newton C. Braga



This circuit was found in an article in the December 1988 Radio Electronics magazine. The circuit has the gain and passband amplified by the use of an additional transistor.
