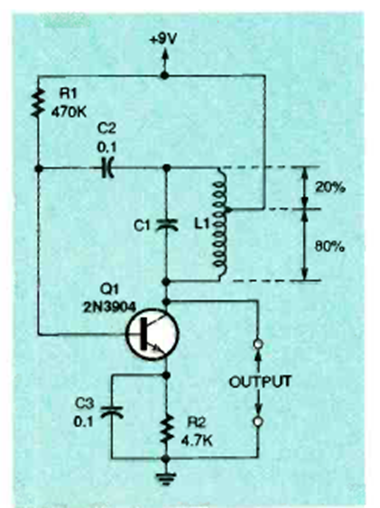

Tuned Coil Hartley Oscillator (CB25940E)

Details
Written by: Newton C. Braga



This oscillator was found in the January 1996 issue of Electronics Now magazine. The frequency is given by the coil and can reach a few tens of Megahertz.
