Manually Triggered VCO 4046 (CB25758E)

Details
Written by: Newton C. Braga

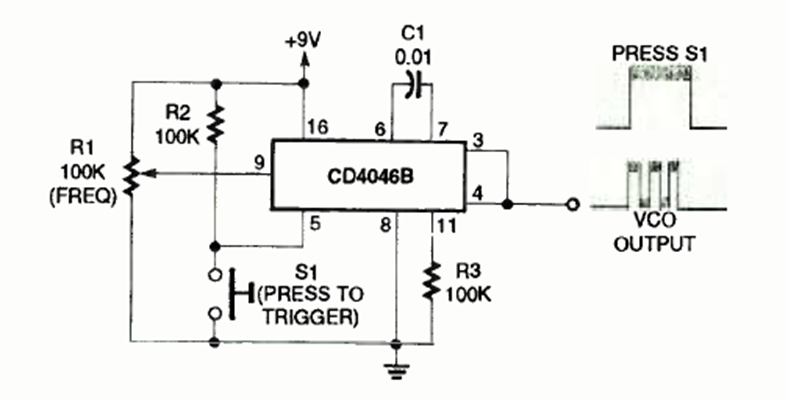

We found this circuit with the CMOS4046 in the August 1994 Electronics Now magazine. The circuit is activated by pressing switch S1.
