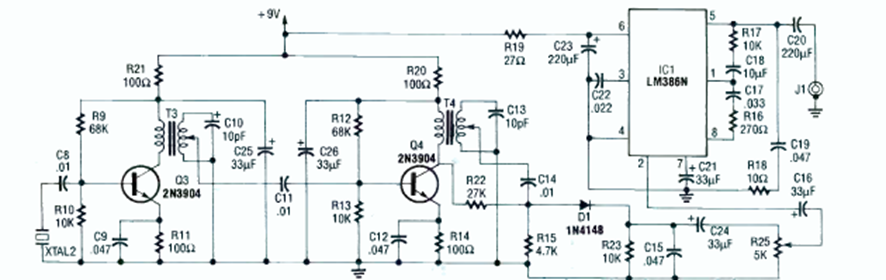

Receiver for Heart Rate Monitor (CB25407E)

Details
Written by: Newton C. Braga



This is the receiver for the previous circuit found in the November 1991 Radio Electronics magazine. The frequency is 2.2 MHz determined by the coils.
